Photographic filter

Summary

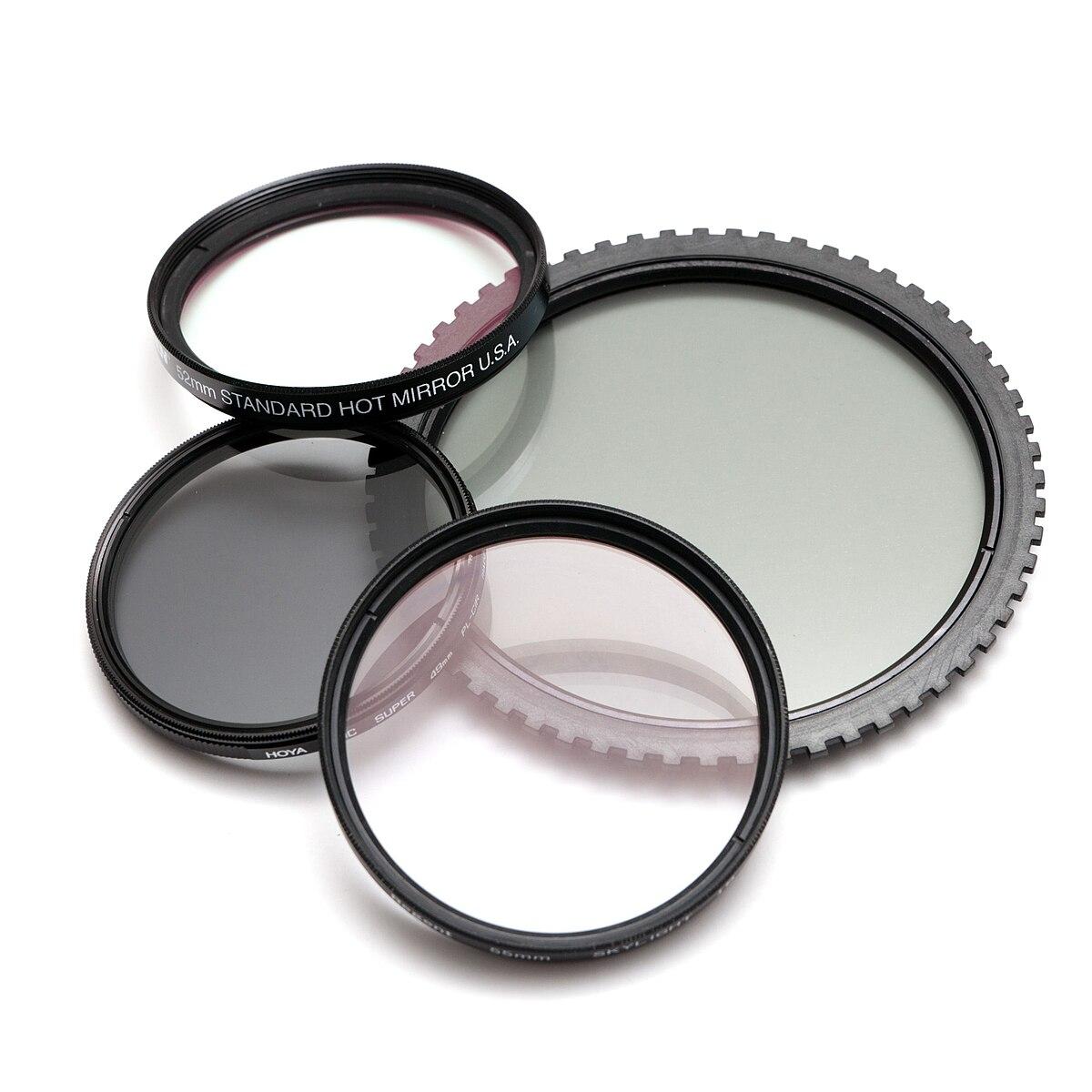

In photography and cinematography, a filter is a camera accessory consisting of an optical filter that can be inserted into the optical path. The filter can be of a square or oblong shape and mounted in a holder accessory, or, more commonly, a glass or plastic disk in a metal or plastic ring frame, which can be screwed into the front of or clipped onto the camera lens. Filters modify the images recorded. Sometimes they are used to make only subtle changes to images; other times the image would simply not be possible without them. In monochrome photography, coloured filters affect the relative brightness of different colours; red lipstick may be rendered as anything from almost white to almost black with different filters. Others change the colour balance of images, so that photographs under incandescent lighting show colours as they are perceived, rather than with a reddish tinge. There are filters that distort the image in a desired way, diffusing an otherwise sharp image, adding a

Official source

https://en.wikipedia.org/wiki/Photographic_filter

About this result

This page is automatically generated and may contain information that is not correct, complete, up-to-date, or relevant to your search query. The same applies to every other page on this website. Please make sure to verify the information with EPFL's official sources.

Related publications (9)

Related publications

Related people

Related units

Related concepts (22)

Related concepts

Related courses (1)

Related courses

Related lectures (1)

Related lectures

A modification to the standard Bayer CFA and photodiode structure for CMOS image sensors is proposed, which we call 2PFC™, meaning “Two Pixel, Full Color”. The blue and red filters of the Bayer pattern are replaced by magenta filters. Under each magenta filter are two stacked, pinned photodiodes; the diode nearest the surface absorbs mostly blue light and the deeper diode absorbs mostly red light. The magenta filter absorbs green light, improving color separation between the resulting blue and red diodes. The dopant implant defining the bottom of the red-absorbing region can be made the same as the green diodes, simplifying the fabrication. Since the spatial resolution for the red, green, and blue channels are identical, color aliasing is greatly reduced. Luminance resolution can also be improved, the thinner diodes lead to higher well capacity with resulting better dynamic range, and fabrication costs can be similar to or less than standard Bayer CMOS imagers. Also, the geometry of the layout lends itself naturally to frequency-based demosaicing.

2009

2PFC (Two Pixels, Full Color): Image Sensor Demosaicing and Characterization

Daniel Tamburrino

We propose a modification to the standard Bayer CFA and photodiode structure for CMOS image sensors, which we call 2PFC (Two Pixels, Full Color). The blue and red filters of the Bayer pattern are replaced by a magenta filter. Under each magenta filter are two stacked, pinned photodiodes; the diode nearest the surface absorbs mostly blue light and the deeper diode absorbs mostly red light. The magenta filter absorbs green light, improving color separation between the blue and red diodes. We first present a frequency-based demosaicing method, which takes advantage of the new 2PFC geometry. Due to the spatial arrangement of red, green, and blue pixels, luminance and chrominance are very well separated in the Fourier space, allowing for computationally inexpensive linear filtering. In comparison with state-of-the-art demosaicing methods for the Bayer CFA, we show that our sensor and demosaicing method outperform the others in terms of color aliasing, PSNR, and zipper effect. As demosaicing alone does not determine image quality, we also analyze the whole system performance in terms of resolution and noise.

2010

Monolithic Silicon Chip for Immunofluorescence Detection on Single Magnetic Beads

Edoardo Charbon, Emile Dupont, Martinus Gijs, Ulrike Lehmann, Caroline Vandevyver

While fluorescence detection is widely used for bioassays owing to its high sensitivity, a complete fluorescent microscopy setup, comprised of a light source, optical filters, a microscope body, and a camera, still is bulky equipment, compromising its use in a point-of-care environment. Here we propose an integrated monolithic silicon chip for integrated magnetic manipulation and optical detection of fluorescently labeled magnetic beads. Our approach permits microscopeless measurement of the fluorescence of a single microparticle. We demonstrate the viability of this approach by the detection of cancer biomarker 5D10 monoclonal antibodies (mAbs) in a noncompetitive sandwich immunoassay performed on the surface of magnetic beads, in a phosphate buffered saline−bovine serum albumin (PBS−BSA) solution, with a detection limit of 1 ng mL−1.

2010
