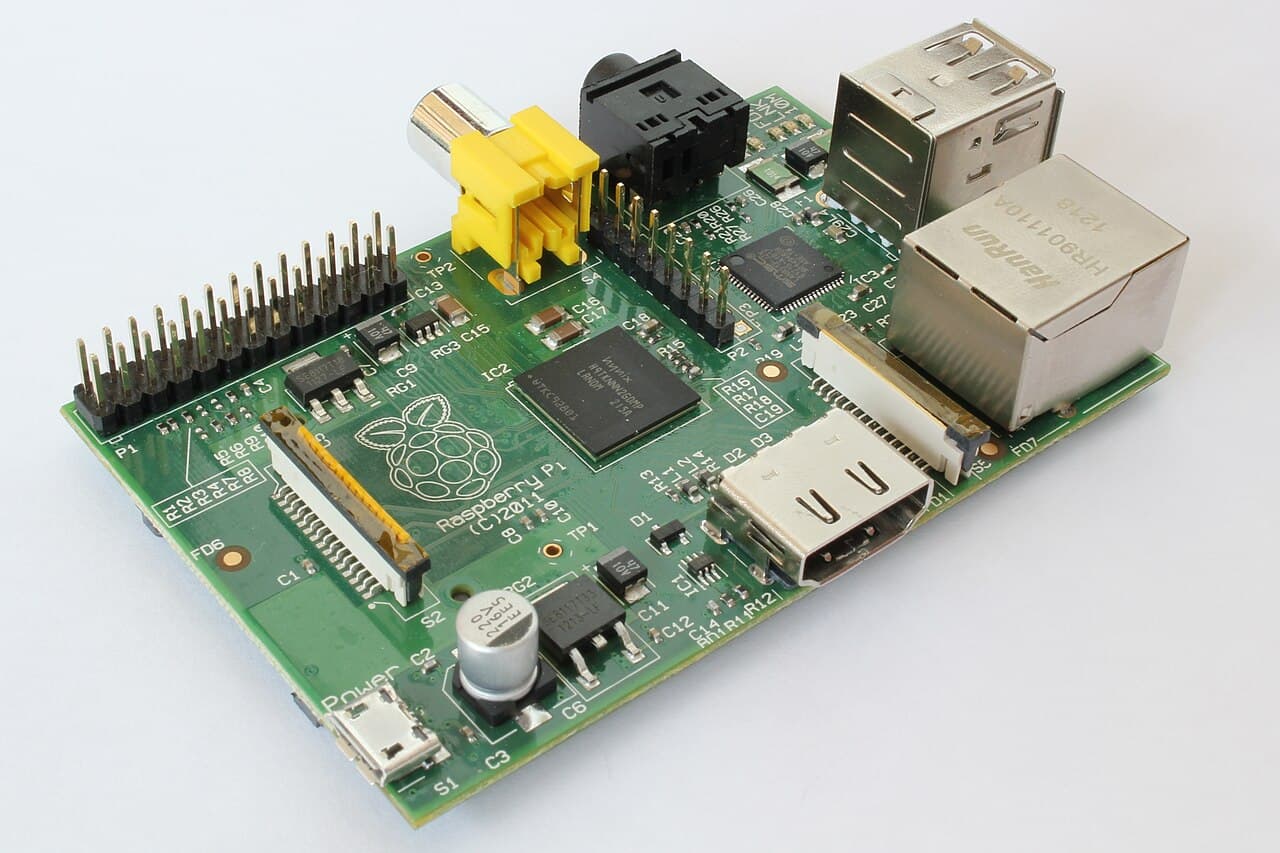

alt=Circuit électronique du RaspberryPi|vignette|Circuit électronique du RaspberryPi Un circuit électronique est un circuit électrique comprenant des composants électroniques interconnectés dont le but est de remplir une fonction. Un circuit électronique est souvent réalisé sur un circuit imprimé et, parmi ses composants, certains sont fréquemment eux-mêmes des circuits électroniques intégrés. Description Un circuit électronique peut être étudié comme une boîte noire dont on ne considère que les grandeurs électriques présentes à chacune de ses connections extérieures. On classe ces connections ou bornes parmi ces catégories :

référence de tension ou masse,
bornes d'alimentation électrique,
bornes d'entrée,
bornes de sortie,
bornes de réglage ou de contrôle.

Le schéma du circuit fournit un modèle simplifié de l'interaction des composants, sans les contraintes de leur implantation matérielle, pour permettre de saisir le cheminement des signaux et leur interactio

Contact resistance effects in organic n-channel thin-film transistors

Reinhold Rödel

Organic thin-film transistors (TFTs) have undergone tremendous progress in the past few years. Their great potential in terms of mechanical flexibility, light weight, low-cost and large-area fabrication makes them promising candidates for novel electronic products, such as sensor arrays, radio-frequency identification tags and flexible displays. For the realization of these applications and to improve their performance it is necessary to miniaturize organic TFTs to dimensions of a few micrometers or even less. However, with such aggressive scaling, the device physics becomes more and more important. Especially the contact resistance at and close to the interface between the organic semiconductor and the source/drain metal limits the performance of the organic TFTs at miniaturized dimensions. In this thesis, the contact properties of bottom-gate, top-contact n-channel organic transistors are investigated using the gated four-probe (GFP) technique. The TFTs employ the small-molecule semiconductor N,N'-bis-(1H,1H-heptafluorobutyl)-1,7-dicyano-perylene-3,4:9,10-tetracarboxylic diimide (PDI-FCN2) and are fabricated on flexible plastic substrates. The transistors are air-stable and can be operated at low voltages of about 3 V, owing to a thin hybrid gate dielectric composed of aluminum oxide and a self-assembled molecular monolayer. The GFP method enabled a detailed investigation of the influence of a multitude of factors, including the gate-source and drain-source voltages, the contact length, the temperature and the contact metal, on the contact resistance. The contact properties are found to be very sensitive to the thickness of the organic semiconductor layer. In transistors in which this layer is relatively thin, ohmic contact resistances as small as about 0.6 Ohm cm were measured. In transistors with a relatively thick organic semiconductor layer, device physics becomes more complex and the current-voltage characteristics of the contact become nonlinear. Space-charge limited currents are identified as the probable origin of this nonlinear behavior. The good performance of the PDI-FCN2 transistors allows the realization of simple integrated circuits. Flexible organic complementary ring oscillators are fabricated and signal propagation delays per stage as short as 6 µs are demonstrated at a supply voltage of 3.6 V.

EPFL2016

A new versatile hybrid MEMS technology for high sensitivity, fluid proof sensing applications.

Matthias Neuenschwander

The field of micro electromechanical systems (MEMS) evolved from the microelectronic industry and the technologies developed to fabricate integrated circuits. As a result, MEMS are commonly fabricated on silicon wafers. The development of MEMS has been driven by three main merits: miniaturisation, microelectronics integration, and parallel fabrication with high precision. Many operational properties scale well with smaller sizes. In addition, integrated electronic circuitry allows embedding MEMS with computing or networking capabilities, while parallel manufacturing enables the fabrication of many identical devices on a single wafer, reducing the unit cost. The main MEMS application is transducers which transform signals from one form of energy to another, and can be used for perception (sensors) or to produce actions (actuators). Silicon and other microelectronic materials like metals have enabled very high-performance MEMS transducers because these materials can be used for a range of very effective actuating and sensing principles.More recently, polymers have started to be used in MEMS because of their unique electrical, physical and chemical properties which include biocompatibility, viscoelasticity and mechanical shock tolerance. They are also much softer than silicon or metals, and they can be processed using many techniques that allow unique low-cost, batch-style fabrication and packaging. However, polymers have relatively low glass-transition and melting temperatures. As a result, the advantages of polymers cannot easily be combined with high-performance actuating and sensing elements as these are based on silicon technology and require high-temperature fabrication steps. Here, a hybrid-MEMS fabrication process is used to address this issue. The developed devices are based on a trilayer structure, where a thick polymer core is sandwiched between two hard thin films, while electronic layers are embedded within in a fluid-compatible way.The objective of this thesis is to turn hybrid-MEMS into a benchmark MEMS technology. This involves many different aspects. First, sensing and actuation elements are integrated into trilayer devices, and their performance is analysed. Then, some more unique possibilities offered by hybrid-MEMS are exploited. A way to fabricate electronics on multiple layers is developed, which allows different electronic features to be integrated in parallel. In addition, three-dimensional bulk features fabricated at several levels are demonstrated. This is possible because the hybrid-MEMS process is based on the bonding of multiple wafers.All these new fabrication features are demonstrated in atomic force microscopy (AFM) applications. Self-actuated trilayer AFM cantilevers with sharp silicon tips are used to boost imaging speeds in the off-resonance tapping (ORT) mode, thanks to an order of magnitude faster surface probing rates. Furthermore, fully integrated ORT imaging is demonstrated with self-actuated piezoresistive cantilevers. Next, trilayer cantilevers with shielded conductive tips are introduced for electrical AFM modes. Finally, ongoing research projects are touched upon, including approaches to fabricate hybrid-MEMS with single crystal silicon piezoresistors for improved sensitivity, and an analysis of reproducibility of fabricated trilayer cantilevers.

EPFL2022
